SSLED-IR Series Bi-Level

Sensor Strip Infrared Sensor LED Series

A multi-purpose Bi-Level LED utility luminaire with internally mounted infrared motion sensor featuring high-quality LED arrays from leading component manufacturers. Ideal for stairwells, corridors, restrooms and a variety of other areas. Offered in 2′ and 4′ lengths (nominal). Designed to be a long-lasting, low-maintenance luminaire, units are standard with low glare polycarbonate diffuser.

Features and Specifications:

  • Bi-level fixtures operate at a low standby light level, offering energy savings, safety and security with full light output instantly upon occupancy with areas fully lit only as needed.
  • Motion sensor options include 2-circuit (bi-level 50% or 25% dim) or on/off .
  • Sensors are available with an optional ambient light sensor for daylight holdoff and choice of lens patterns providing maximum coverage for almost any application.
SensorsExplained

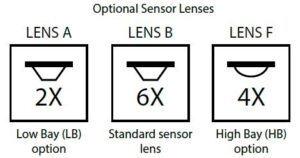

LENS OPTIONS-SSLED

Construction:

  • Housings are die-formed of code gauge steel
  • Ample knockouts are provided for convenient mounting
  • Smooth frosted polycarbonate diffuse, injection-molded end caps

Size Options:

  • Available in 2′ or 4′ lengths (nominal)

Sensor:

  • Passive infrared (PIR) with choice of coverage patterns
  • Ambient light sensing optional Standard sensor lens provides wide coverage range of up to 6 times mounting height (up to 8-10ft)
  • Choice of 50% or 25% bi-level or on/off
  • Available with OS-NET wireless mesh network interconnectivity

Listing & Ratings:

  • All electrical components are U.L. listed or recognized
  • All fixtures are U.L. Certified and Union made in the USA
  • Meets Buy America Act (ARRA)

Mounting Options:

  • Surface mount on walls or ceilings

Driver:

  • Universal voltage 120-277V standard
  • Custom driver tuning available for specific lumen requirements

Warranty:

  • 5 years – part replacement only (see our terms & conditions page at www.lamarled.com for details)

Ratings & Certifications:

US-Union-Logo
Voltage-Logo
UL-Logo
5YrWarranty-Logo
CRI-Logo

SSLED-IR Ordering Guide Example:

SSLED48-40-25

SSLED
SeriesSizeCCTDimming Options
Sensor Lens OptionGeneral Options
SSLED = Single sensor LED24 = 2’ (nominal)
48 = 4’ (nominal)
30 = 3000K
35 = 3500K
40 = 4000K
50 = 5000K
50 = Bi-level 50% standby
25 = Bi-level 25% standby
FO = On/Off
Blank = Blank (std lens)
LB = Low bay
HB = High bay
See sensor lens options
(see spec sheet)
EM = Emergency pack >90 min., >500 lumens
(higher output & run time available - consult factory)
DS = Ambient light sensing
OSN = OS-NET compatible

Dimensions:

CONSULT YOUR LOCAL ORDINANCES AND BUILDING CODES FOR COMPLIANCE

LAMAR LED, SSLED-IR, Occu-Smart, Strips and Industrial Lighting
Product-Dimension-Temp

LED Lumen/Wattage Chart – 4000K:

LED Wattage Chart (SSLEDxx50-XX – 5000K):

Standby 50%Standby 25%High
2’ (1 Board)11W 5.4W14.5W - 1615 lu
4’ (2 Boards)15.5W7.8W27.4W - 3271 lu

LED Wattage Chart (SSLEDxx50-FO – 5000K):

2’ (1 Board)17W -2020 lu
4’ (2 Boards)33W - 4082 lu

CCT Multipliers:

3000K94%
3500K95%
4000K99%
5000K100%

High Mode:

Low (L)Medium (M)High (H)
2’ (1 Board)11.8W - 1370 lu17.3W - 1618 lu26W - 3045 lu
4’ (2 Boards)19.6W - 2716 lu29.4W - 3462 lu50.5W - 5920 lu

Low Mode Wattage:

Low (L) Medium (M) High (H)
2’ (1 Board)10% - 4.8W
25% - 5.6W
50% - 7.3W
10% - 4.7W
25% - 6.2W
50% - 10.3W
10% - 4.6W
25% - 7.3W
50% - 14.5W
4’ (2 Boards)10% - 4.8W
25% - 6.6W
50% - 11.4W
10% - 4.8W
25% - 8.9W
50% - 16.4W
10% - 7.3W
25% - 14.6W
50% - 27.7W

Sensor Coverage Pattern:

Sensor coverage pattern

Photometrics:

TT(U,H)48M-4: Spacing Criterion (0-180) 1.20 Spacing Criterion (90-270) 1.10

Product-Lumen-Temp

DOWNLOADS

Lumens/Wattage DataPDF IES
3000K/1474 Lu SSLED2430-XXSSLED2430-XX
5000K/1615 Lu SSLED2450-XXSSLED2450-XX
3000K/2784 Lu SSLED4830-XXSSLED4830-XX
5000K/3271 Lu SSLED4850-XXSSLED4850-XX
