CREATE THE DESIGN YOU WANT WITHOUT LIMITS.

LAMAR LED INTRODUCES OUR SPECIFICATION-GRADE, FIELD ADJUSTABLE LINEAR LIGHTING SYSTEM (LLS) – A UNIVERSAL SYSTEM THAT FITS ALL LINEAR APPLICATIONS.

LIGHT ANY CEILING WITH EASE

The LLS expansion modules telescope to fit any custom run length within 1 inch, with uniform light distribution across the lens. The fixed or field adjustable corners can accommodate not just standard 90 degree right angles, but any custom angle on the project. This enables field-adjustable polygons or irregular shapes dictated by windows and other field conditions that the job requires. Plus, multi-color tuning (CCT) and plug-and-play wiring are all precision engineered for contractor-friendly installation.

LAMAR LED: Architectural LED Lighting: NLSDI Series LED Lights

COVE

LAMAR LED: Architectural LED Lighting: 44LSDI Series LED Lights

PERIMETER

LAMAR LED: Architectural LED Lighting: NLSDI-MCT Series LED

RECESSED

LAMAR LED: Architectural LED Lighting: TRSDI Series LED Lights

SURFACE



LAMAR LED: Architectural LED Lighting: TRSDI Series LED Lights

SUSPENDED

INTRODUCING THE LAMARLED LINEAR LIGHTING SYSTEM

KEY FEATURES

CUSTOM CONFIGURATIONS

The manufacturing process allows for any custom run length and fixture width, custom cove design, and more. Expansion modules telescope to fit custom lengths from 22 inches down to 1 inch.

FLEXIBILIY OF DESIGN

Standard 90-degree corners, field adjustable and/or fixed custom angles enable squares, rectangles, and custom shapes offering the flexibility of design for various ceiling types, coves, and perimeters including individual or continuous runs with plug-and-play wiring for contractor-friendly installation..

FREEDOM IN THE FIELD

Easy-to-install expansion modules and either the lift-and-shift or snap-in lens solutions eliminate the need to field-cut any metal on site.

lls-icon-easy

EASE OF INSTALLATION

  • Contractor friendly design for simplicity and efficiency
    – Precision fabricated steel housing requires no field cutting
    – Suitable for (IC) insulated ceiling installation (low & med power only)
  • Plug-and-play wiring for continuous runs
lls-icon-perform

HIGH PERFORMANCE

  • Frosted acrylic diffuser offers high light transmission of over 85% – available as regress or snap-on flush mount
  • Delivers up to 750 lumens per foot
  • Uniform illumination throughout the entire system for consistent light levels and zero dark spots
lls-icon-corner

ADJUSTABILITY

  • Field-adjustable expansion module ensures even illumination with a customized fit on every project. Expand linear runs by up to 22″ and down to 1″
  • Field-adjustable corners up to 330 degrees
  • Offering the flexibility of design to fit various ceiling types, coves, and perimeters including individual or continuous runs
lls-icon-adjust

INSIDE & OUTSIDE CORNERS

  • Fully lit inside and outside corners allow for uniform continuous light
  • Standard 90 degree, custom fixed corners, and field adjustable corners
lls-icon-tunability

TUNABILITY

  • New Multi-Color Tuning LED board arrays
  • Field selectable at 3000K, 3500K, or 4000K
  • Optional color tuning

COMPONENTS

BASE & EXPANSION MODULES

LLS-Basemodel-Expansion-1

PERIMETER SKIRT

LLS-Perimeter-Skirt-1

T-MODULE

LLS-Tmodule-1

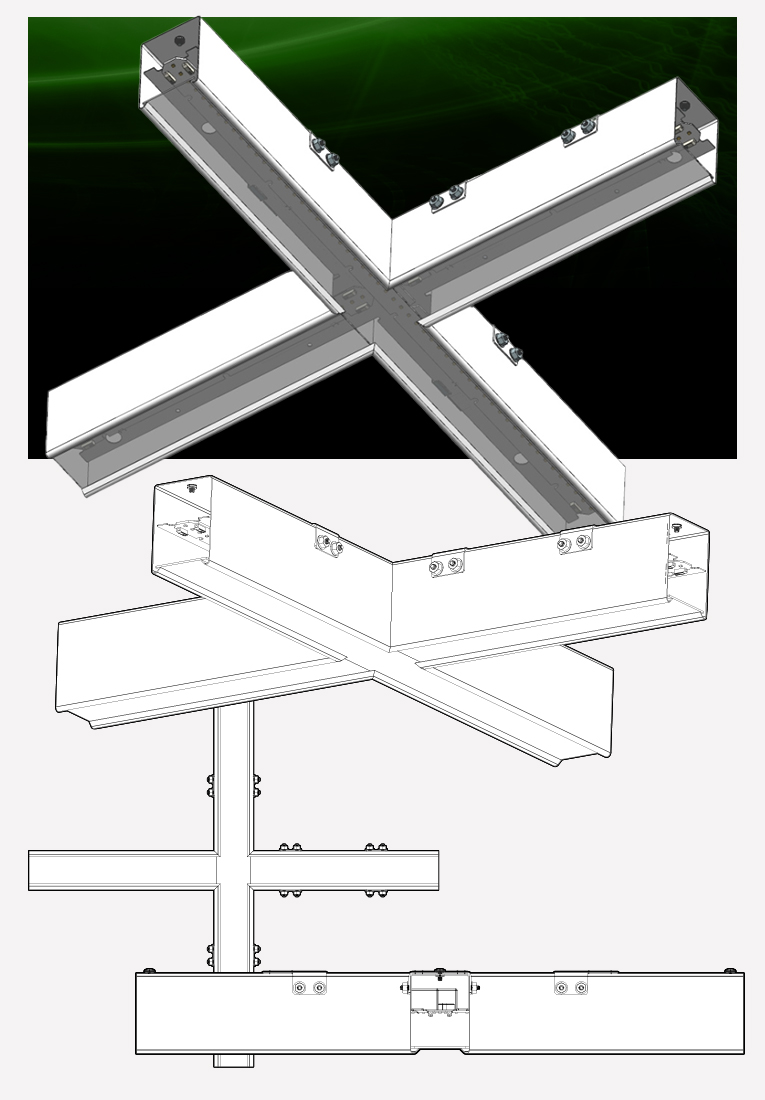

CROSS MODULE

LLS-Xmodule-1

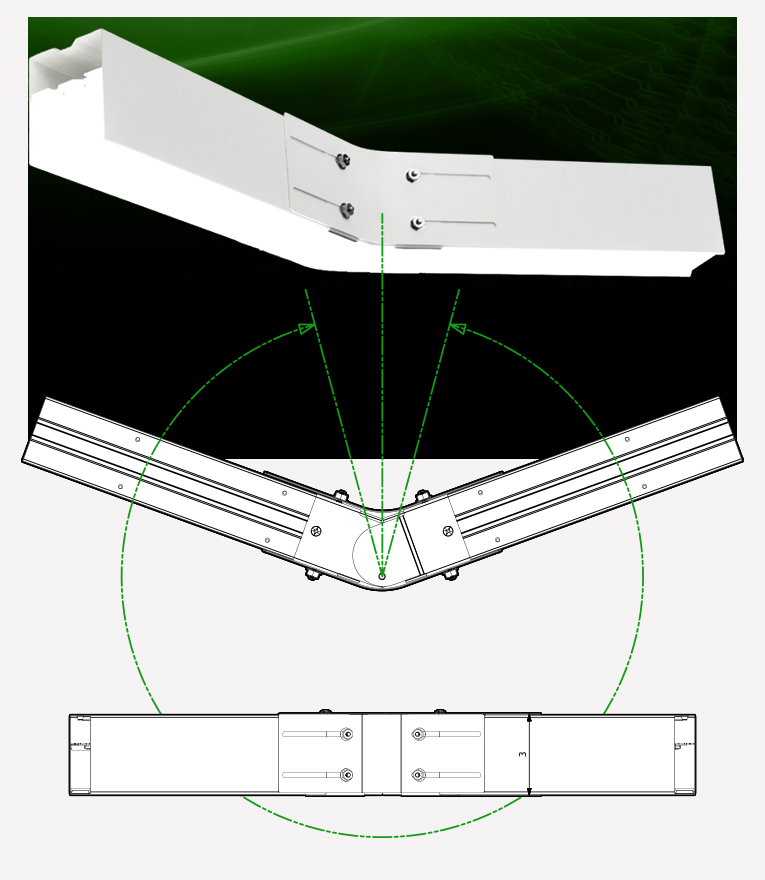

FIELD ADJUSTABLE CORNER MODULE

LLS-Field-Adjust-1

STANDARD & CUSTOM FIXED CORNERS

LLS-Field-Corners-1

DON’T SACRIFICE PERFORMANCE & AESTHEIC APPEAL

The LLS provides the aesthetic appeal and features of extruded aluminum fixtures, value engineered and fabricated from cold rolled steel to provide a lower cost solution without sacrificing performance.

LAMAR LED’s Linear Lighting System (LLS) is designed and manufactured in the USA.
