VOL Gen5 Bi-Level Series w/ Multi-Color Tuning

Voyager Bi-Level Motion Sensor Luminaire w/Bluetooth & MCT

The VOL Gen5 is an attractive LED bi-level luminaire featuring Bluetooth® technology. Field adjustable output power when in normal mode and field adjustable standby dim levels as well as time delay settings. No need to open the fixture – It’s as easy as downloading a free iOS or Android companion app. Now with Multi-Color Tuning LED modules standard, field switchable for 3000K, 3500K, or 4000K (factory setting).

Features and Specifications:

  • Manual dim settings and time delay can also be set via the dipswitches and trimpots on the front of the unit.
  • Dim settings of 10, 25, or 50% of full output are available and time delay settings of 1, 5 or 20 minutes can be set without the companion app.
  • Ideal for stairwells and other spaces with low occupancy.
  • Available in lengths of  2’ and 4′ and are equipped with die-formed end caps and formed steel housing and gear tray which can be removed for servicing without tools.
  • The frosted impact-resistant polycarbonate diffuser boasts up to 94% transmittance while shielding the source comfortably and effectively.
    Consuming as little as 3W in “standby-mode” the VOL Gen5 is the next Generation energy-saving option in LAMAR LED’s ever-growing Occu-smart line.

BEFORE INSTALLATION, PLEASE CONSULT YOUR LOCAL ORDINANCES AND BUILDING CODES FOR COMPLIANCE

Construction:

  • Direct setting of sensitivity and time delay using the switches on the sensor, adjustable high and low light levels through the app
  • Durable steel housing and injection molded end caps.
    Efficient LED formula impact-resistant diffuser, smooth exterior for easy cleaning, retained by captive ends
  • User selectable Multi-Color Tuning via dipswitch on LED board array – choice of 3000K, 3500K or 4000K (factory pre-set to 4000K), Separate 5000k available
  • Optional Casambi® Bluetooth mesh for fixture to fixture communication (see back for details)

Size Options:

  • Available in 2′ and 4′ lengths (nominal)

Sensor Options:

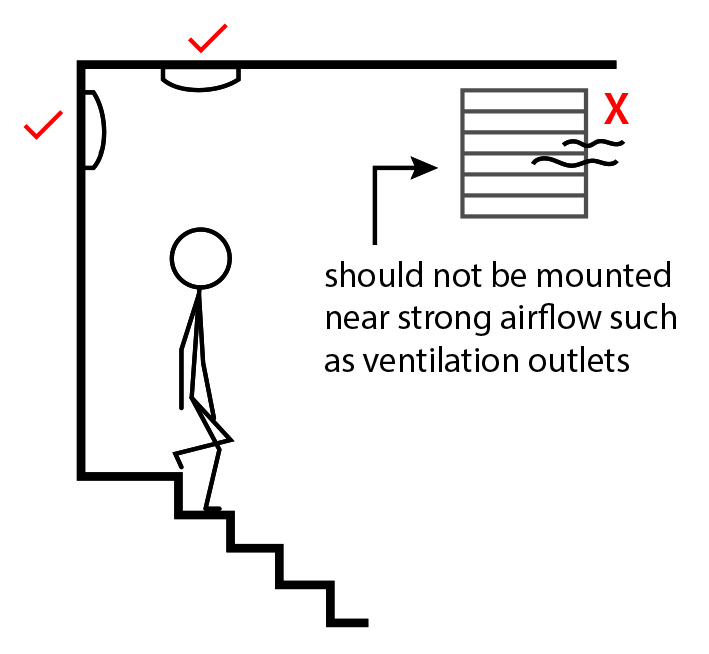

  • Highly sensitive ultrasonic motion sensor detects motion outside direct line of sight
  • Easy setup with 5-minute walk test mode
  • Adjustable sensitivity and time delay of 1, 5, or 20 minutes
  • User-selectable standby options 5, 10, 25, or 50% nominal light output (factory shipped 10% standby level) – Can be adjusted to any non-listed value via app

Listing & Ratings:

  • UL Certified, ADA compliant
  • Union made in the USA, Meets Buy America Act (ARRA)

Mounting Options:

  • Rigid stem mount or surface mount on ceiling or wall

Driver:

  • Universal voltage 120-277V standard
  • Optional emergency backup available including “UL924” approved

Warranty:

  • 5 years – part replacement only (see our terms & conditions page at www.lamarled.com for details)
LAMAR LED, VOL, Occu-Smart
LAMAR LED, VOL, Occu-Smart

iPhone App

LAMAR LED, VOL, Occu-Smart

Android App

Ratings & Certifications:

US-Union-Logo
Voltage-Logo
UL-Logo
RoHS-Logo
5YrWarranty-Logo
DLCPremium-Logo
CRI-Logo

VOL Gen5 Series Ordering Guide Example:

VOL48AFAMCT-AS-BT or VOL48AFA50-AS-BT

VOL AFAMCT or 50
SeriesSizePowerLens Options
MCT or 5000K
Standby Options
BluetoothGeneral Options
VOL = Voyager
Gen5
24 = 2’
nominal
48 = 4’
nominal
A = Adjustable power user
selectable output power
via smartphone app
See chart on back
FA = Frosted
impact resistant
Acrylic
MCT = User
Selectable:
3000K, 3500K, 4000K

50 = 5000K
AS = User selectable
standby options 5,
10, 25 or 50% light
output (factory
shipped 10% standby
level)
FO = Dim to off (dark)
BT = Bluetooth
(standard)
BTM = Bluetooth
mesh (optional)
EM = Emergency pack >90 min., >500
lumens
EMH = High lumen emergency pack
>90 min., >1100 lumens
EM9 = "UL924" approved as Emergency Lighting Equipment
ESRU = 120V/277V emergency shunt relay

Dimensions:

CONSULT YOUR LOCAL ORDINANCES AND BUILDING CODES FOR COMPLIANCE

LAMAR LED, VOL, Occu-Smart

LED Lumen/Wattage Chart – 4000K:

Full Lumens
4000K
 2’ VOYAGER  4’ VOYAGER
Full Lumens
4000K
LOW
(57%)
MED
(78%)
HIGH
(100%)
LOW
(57%)
MED
(78%)
HIGH
(100%)
Full Lumens
4000K
145019982514290039955021
Full Power14.5W19.5W22W27W36.5W41.5W
50% DIM13W13W13W23.6W23.6W23.6W
25% DIM7.5W7.5W7.5W12.6W12.6W12.6W
10% DIM 4W4W4W6W6W6W
5% DIM 3W3W3W4W4W4W

Lumen Multiplier:

4000KShown
3500K 0.97
3000K0.95
5000K1.05

DOWNLOADS

Lumens/Wattage DataPDF IES
1495 Lu/13W VOL24AFA50-LVOL24AFA50-L
2060 Lu/19W VOL24AFA50-MVOL24AFA50-M
2592 Lu/25W VOL24AFA50-HVOL24AFA50-H
2990 Lu/24W VOL48AFA50-LVOL48AFA50-L
4119 Lu/36W VOL48AFA50-MVOL48AFA50-M
5176 Lu/50W VOL48AFA50-HVOL48AFA50-H
